The ELEKTRON-SXRF-2080II is used to detect foreign bodies in the form of metals, bones, stones, glass, hard plastic and even rubber. Thanks to the use of two modern "X" ionizing radiation lamps, the scanner is much more sensitive and detectable. This type of X-Ray scanner is used to test, for example, pickled cucumbers, mushrooms in vinegar, jams, oil, milk, water, juices or energy drinks.

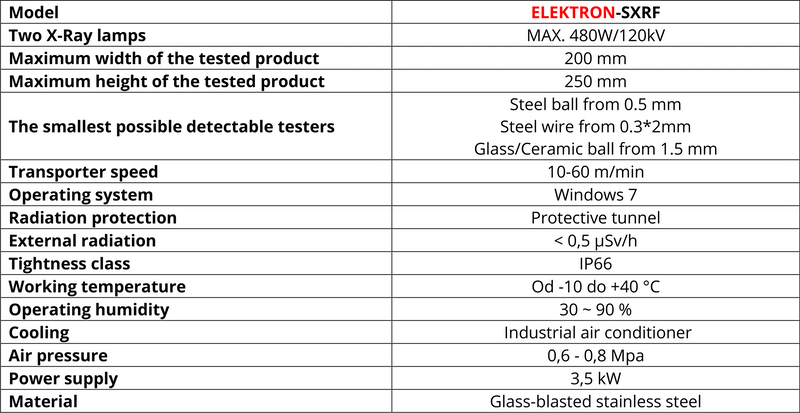

PARAMETERS

Model

ELEKTRON-SXRF

Two X-Ray lamps

MAX. 480W/120kV, 80mA

Maximum width of the tested product

200 mm

Maximum height of the tested product

250 mm

The smallest possible detectable testers

Steel ball from 0.5 mm

Steel wire from 0.3*2mm

Glass/Ceramic ball from 1.5 mm

Transporter speed

10-60 m/min

Operating system

Windows 7

Radiation protection

Protective tunnel

External radiation

< 0,5 μSv/h

Tightness class

IP66

Working temperature

from -10 to +40 °C

Working humidity

30 ~ 90 %

Cooling

PFANNENBERG industrial air conditioner

Recoil system

Pusher

Air pressure

0,8 Mpa

Power

3,5 kW

Material

Glass-blasted stainless steel


APPLICTATION
  • products packed in jars, e.g. pickled cucumbers,
  • mushrooms in vinegar, jams, sausage, etc.
  • products packed in cans, e.g. bean sprouts, peas,
  • canned fish, energy drinks, etc.
  • products in plastic and glass bottles, e.g. oil, milk, water, juices, etc.

FOREIGN BODY DETECTED




MAIN FEATURE
  • the highest level of detection,
  • compliant with CE, FDA, CSA directives and standards,
  • warranty for the scanner for 24 months,
  • technical service support in 24h - WAN,
  • easy and intuitive user interface,
  • X-Ray visual information system,
  • separation systems for contaminated products adapted to the type, size and weight of the product,
  • testing the product with and without packaging,
  • replacement of the conveyor belt in 30 seconds,
  • detection of defective products with detriment (deformed product, crumpled can, lack of product or defective product),
  • automatic diagnostics and security control system (detection of open inspection doors in the device and immediate stopping of the device and switching off the X-Ray lamp radiation).

ADDITIONAL ADVANTAGES
  • two levels of access to the program protected by a password,

  • the possibility of individual adjustment of the device to the production line with high accuracy,

  • modernization of devices in accordance with the requirements and expectations of our customers,

  • all our scanners are certified by the National Atomic Energy Agency No. D-17869,

  • marking the X-Ray scanner in accordance with the requirements of the strategic recipient,

  • technical drawings in DWG form at the stage of detailing,

  • central control of additional devices, e.g. dirt separators, feeding and receiving conveyors and return conveyors.


"FROST" SYSTEM

The X-Ray scanner can be equipped with a unique "FROST" system with a built-in intelligent heating system and a thermostat inside the control panel, which protects the internal electronics against moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water).

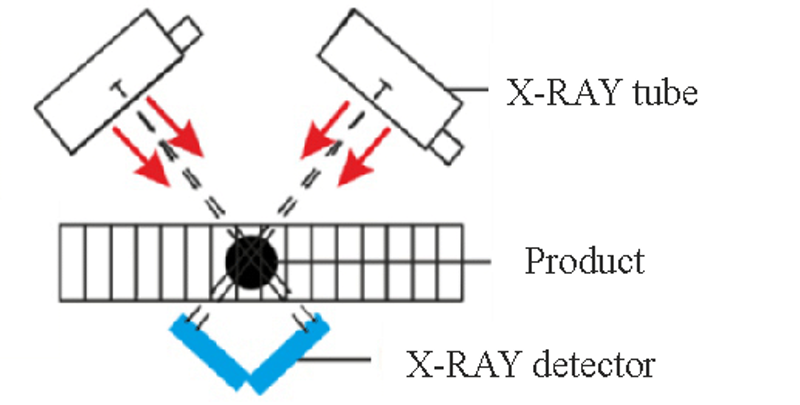

LAMP SETTING DIAGRAM



The technological connection of two beams examining the product ensures a high level of detection.


LIST OF INDIVIDUAL COMPONENTS

FUNCTION

NAME

MANUFACTURER

X-Ray source

X-Ray generator

VJ USA

X-Ray receiver

X-Ray detector

DT FINLANDIA

Device management

17” touch screen

iEi

Data processing

Industrial computer

TANK 820

Temperature and humidity control

Air conditioner

PFANNENBERG

Conveyor belt drive

Gear motor

ORIENTAL MOTOR

Speed adjustment

Inverter

YASKAWA/OMRON

Electrical protection

Overcurrent circuit breakers

SCHNEIDER ELECTRIC /ABB

Connection between devices

Military connectors

PLT

Safety management

Limit switches

OMRON

Automation management

PLC driver

OMRON

Warning information

Optical-acoustic signaling device

SCHNEIDER ELECTRIC
