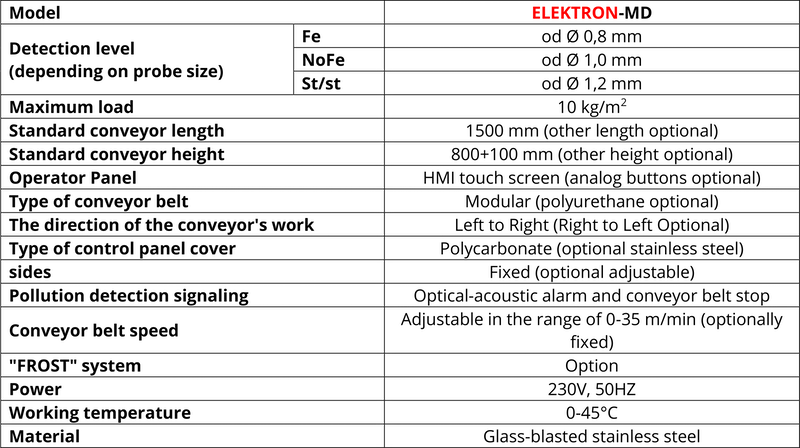

PARAMETERS
Model | ELEKTRON-MD | |
Detection level (depending on probe size) | Fe | from Ø 0,8 mm |
NoFe | from Ø 1,0 mm | |
St/st | from Ø 1,2 mm | |
Maximum load | 10 kg/m2 | |
Standard conveyor length | 1500 mm (other length optional) | |
Standard conveyor height | 800+100 mm (other height optional) | |
Operator Panel | HMI touch screen (analog buttons optional) | |
Type of conveyor belt | Modular (polyurethane optional) | |
The direction of the conveyor's work | Left to Right (Right to Left Optional) | |
Type of control panel cover | Polycarbonate (optional stainless steel) | |
Sides | Fixed (optional adjustable) | |
Pollution detection signaling | Optical-acoustic alarm and conveyor belt stop | |
Conveyor belt speed | Adjustable in the range of 0-35 m/min (optionally fixed) | |
"FROST" system | Option | |
Power | 230 V, 50 Hz | |
Working temperature | 0-45°C | |
Material | Glass-blasted stainless steel | |

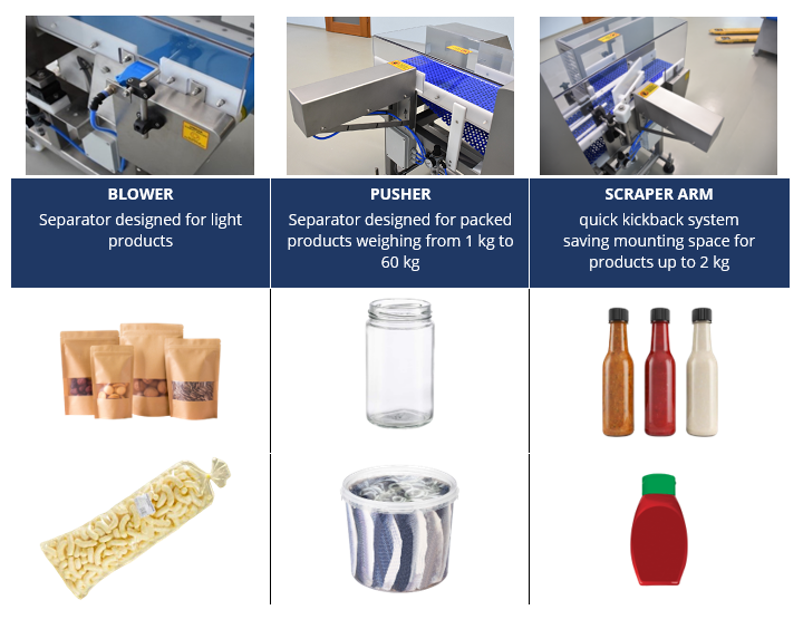

TYPES OF REJECTORS
APPLICATION
The metal detector has been specifically designed to test tall products in a standing position (e.g. jars without lids, plastic and glass bottles, tall paper or plastic bags).
FOREIGN BODY DETECTED
WHAT MAKES US STAND OUT?
Touchless auto-learning system
The ELEKTRON-MD series of detectors has a non-contact auto-learning system, unheard of in other detectors. The non-contact auto-learning system analyzes the tested product and automatically saves the detection parameters (e.g. the influence of the product itself and the background of the environment). The detector, controlling the transporter, automatically moves the product through the detection probe window back and forth until the learning is completed. This solution facilitates work, especially with heavy products. Thanks to this, learning is much more accurate without interference and also increases the level of detection and stability of the metal detector.
Auto-calibration system
Our metal detectors have a built-in auto-calibration system, thanks to which the devices do not require constant service inspections. The detection system accurately oscillates at the frequency of the test substance, adjusts itself to variable values. The management system is designed so that each time the detector is disconnected from the network for about 15 minutes, it automatically performs a background analysis and self-calibration of the system after restarting.
"FROST" system
Our metal detectors can be equipped with a unique "FROST" system with a built-in intelligent heating system and thermostat inside the control panel, which protects the internal electronics from moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water). Operation of the machine in a cold room and with a frozen product.
SPECIFICATION
Large and legible touch display.
Optical-acoustic alarm.
NO/NC output to stop another machine or conveyor.
Detection history, date and time.
USB output for reading and archiving data.
IP68 probe tightness class, IP54/56 conveyor drive.
Menu in Polish and English (standard).
Menu in German, French, Russian, Italian, Spanish, Turkish and Arabic (optional).
SYSTEM FUNCTIONS
Automatic learning of the tested product.
Automatic background analysis and self-calibration of the system.
Memory function for testing 100 different products.
Automatic analysis of the test product.
Password protected access levels.
Working in automatic variable frequency.
Automatic detection enforcement system.
Simple and clear parameter setting system.
Detection analysis graph.
"FROST" system.
YOUR BENEFITS
Warranty and post-warranty service within 24 hours.
Lifetime warranty on probes (excluding electronics).
Technical support by phone or e-mail.
Publicly available spare parts of known and reputable companies.
Repair and modernization of equipment in accordance with requirements and expectations of our customers.
Reactivation and improvement of all ours metal detectors, even the oldest ones, to the current generation.
Consultations and training.
