DOWNLOAD THE PRODUCT CARD

PARAMETERS

Model

ELEKTRON-MD

Specification

2008

3008, 3012

3015, 3018

4008, 4012

4015, 4018

Detection level

Fe

from Ø 0,5 mm

from Ø 0,6 mm

from Ø 0,8 mm

NoFe

from Ø 0,7 mm

from Ø 0,8 mm

from Ø 1,0 mm

St/st

from Ø 0,8 mm

from Ø 1,0 mm

from Ø 1,2 mm

Probe clearance working width

200 mm

300 mm

400 mm

Probe clearance working height

80 mm



80 mm, 120 mm

150 mm, 180 mm

80 mm, 120 mm

150 mm, 180 mm

The width of the conveyor belt

160 mm

260 mm

360 mm

Maximum load

10 kg/m2

15 kg/m2

25 kg/m2

Transporter length

1500 mm (other length optional)

Standard conveyor height

800+100 mm (other height optional)

Operator Panel

HMI touch screen (analog buttons optional)

Type of conveyor belt

Modular (polyurethane optional)

The direction of the conveyor's work

Left to Right (Right to Left Optional)

Type of control panel cover

Polycarbonate (optional stainless steel)

Sides

Fixed (optional adjustable)

Pollution detection signaling

Optical-acoustic alarm and conveyor belt stop

Conveyor belt speed

Adjustable in the range of 0-35 m/min (optionally fixed)

"FROST" system

Option

Power

230 V, 50 Hz

Working temperature

0-45°C

Material

Glass-blasted stainless steel

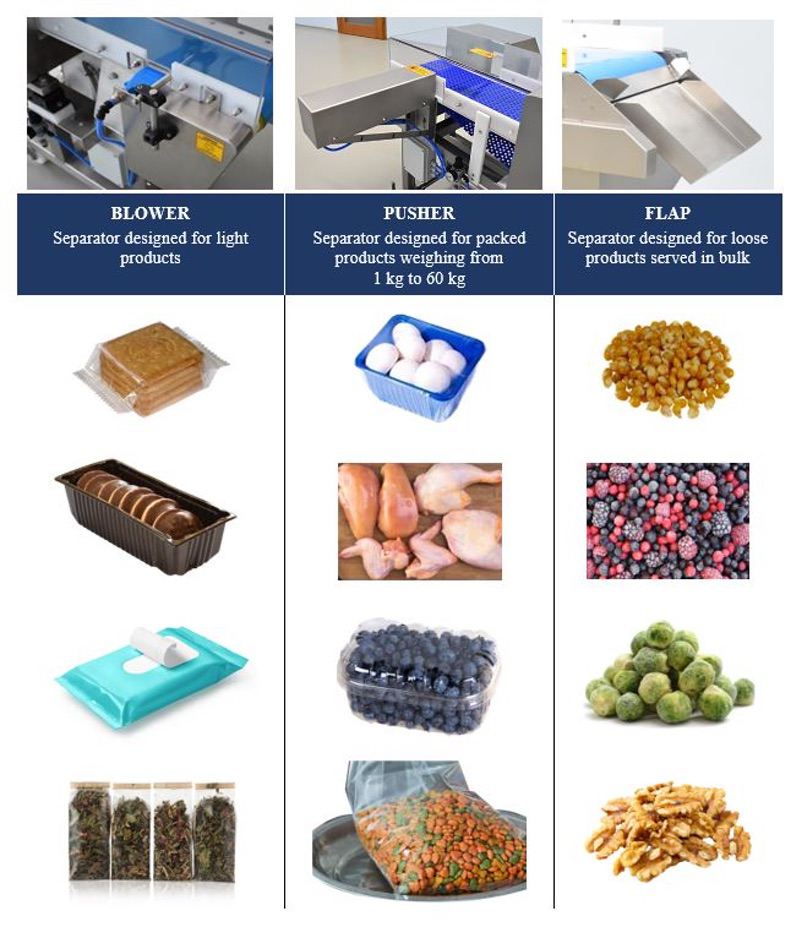

TYPES OF SEPARATORS

APPLICATION
Metal detectors for small products are designed for testing products in a lying position packed in all metal-free packaging or for products administered in bulk (without packaging). Our devices are dedicated to work with products such as:
  • meat, sausages, fish, seafood - fresh and frozen,
  • semi-finished meat and fish intended for milling,
  • vegetables and fruits - fresh, frozen and processed,
  • dairy - milk, cheese, cream, etc.,
  • bakery and confectionery products - bread, rolls, cookies, etc.,
  • ready-made products - ready-made dinner dishes, e.g. dumplings, noodles, etc.

FOREIGN BODY DETECTED


WHAT MAKES US STAND OUT?



Touchless auto-learning system
The ELEKTRON-MD series of detectors has a non-contact auto-learning system, unprecedented in other detectors. The non-contact auto-learning system analyzes the tested product and automatically saves the detection parameters (e.g. the influence of the product itself and the background of the environment). The detector, controlling the transporter, automatically moves the product through the detection probe window back and forth until the learning is completed. This solution facilitates work, especially with heavy products. Thanks to this, learning is much more accurate without interference and also increases the level of detection and stability of the metal detector.

Auto-calibration system
Our metal detectors have a built-in auto-calibration system, thanks to which the devices do not require constant service inspections. The detection system accurately oscillates at the frequency of the test substance, adjusts itself to variable values. The management system is designed so that each time the detector is disconnected from the network for about 15 minutes, it automatically performs a background analysis and self-calibration of the system after restarting.

"FROST" system
Our metal detectors can be equipped with a unique "FROST" system with a built-in intelligent heating system and thermostat inside the control panel, which protects the internal electronics from moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water). Operation of the machine in a cold room and with a frozen product.

SPECIFICATION
  • Large and legible touch display.
  • Optical-acoustic alarm.
  • NO/NC output to stop another machine or conveyor.
  • Detection history, date and time.
  • USB output for reading and archiving data.
  • IP68 probe tightness class, IP54/56 conveyor drive.
  • Menu in Polish and English (standard).
  • Menu in German, French, Russian, Italian, Spanish, Turkish and Arabic (optional).

SYSTEM FUNCTIONS
  • Automatic learning of the tested product.
  • Automatic background analysis and self-calibration of the system.
  • Memory function for testing 100 different products.
  • Automatic analysis of the test product.
  • Password protected access levels.
  • Working in automatic variable frequency.
  • Automatic detection enforcement system.
  • Simple and clear parameter setting system.
  • Detection analysis graph.
  • "FROST" system

YOUR BENEFITS
  • Warranty and post-warranty service in 24 hours.
  • Lifetime warranty on probes (excluding electronics).
  • Telephone or e-mail technical support.
  • Publicly available spare parts from well-known and reputable companies.
  • Repair and modernization of devices in accordance with the requirements and expectations of our customers.
  • Reactivation and improvement of all our metal detectors, even the oldest ones, to the current generation.
  • Consultations and training.



WE PROVIDE WARRANTY AND POST-WARRANTY SERVICE!
