Checkweighter ELEKTRON-DKW-160R are used in many branches of the food and chemical industries. These devices are for all products removed, in the weight range from 0.1 to 2 kg.

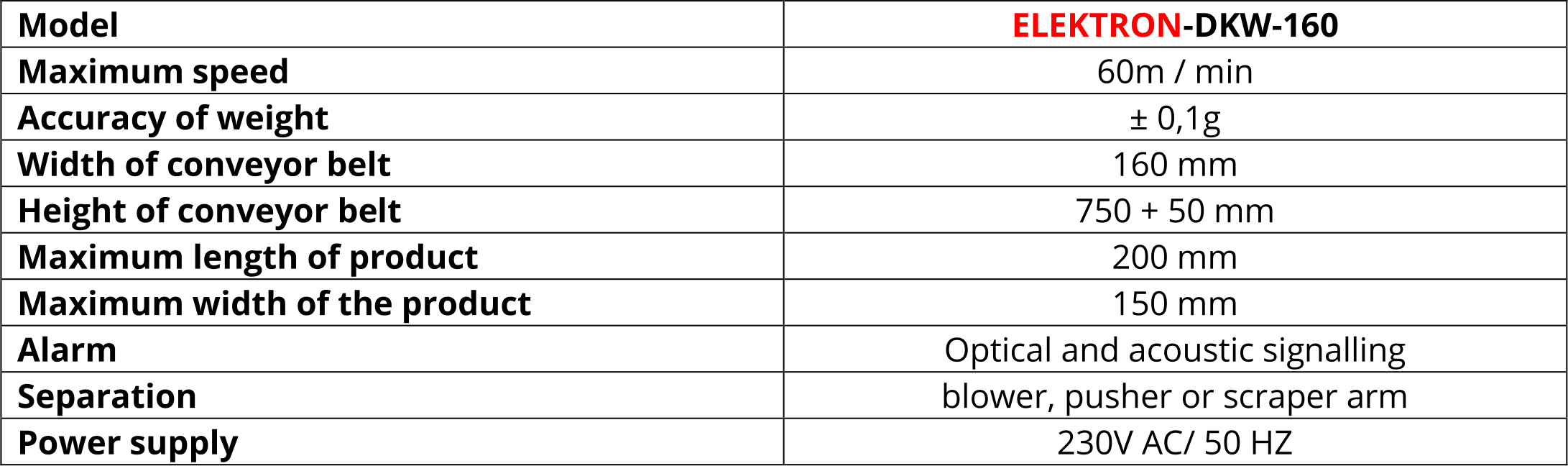

PARAMETERS
Model | ELEKTRON-DKW-160 |
Max speed | 60m / min |
Balance accuracy | ± 0,1g |
Conveyor belt width | 160 mm |
Conveyor belt height | 800 mm |
Maximum product length | 200 mm |
Maximum product width | 150 mm |
Alarm | Optical and acoustic signaling |
Separation | blower |
Charger | 220V AC/ 50 HZ |
APPLICATION
cosmetics - creams, masks, scrubs, etc.
cleaning products - dishwashing liquid, washing powder, dishwasher capsules and many others,
meat, sausages, fish, seafood - fresh and frozen,
vegetables and fruits - fresh, frozen and processed,
dairy - milk, cheese, cream, etc.,
bakery and confectionery products - cakes, cookies, cupcakes, etc.,
ready-made products - ready-made dinner dishes, e.g. dumplings, etc.,
cereal and flour products,
nuts and dried fruits - ready-made mixtures for the confectionery industry.
MAIN FEATURES
smooth speed regulation 10 - 60m/min,
LCD control panel,
multi-functional operation (all functions shown as icons),
system based on DSP technology,
intelligent management system with memory,
high weighing accuracy in the weight range from 10 to 2000g,
SUS304 steel structure.
SYSTEM FUNCTIONS
fully automatic and maintenance-free product weighing system,
accurate measurement, friendly user interface,
automatic collection of statistical data,
automatic scale for internal control of products in the production process without legalization.
LIST OF COMPONENTS
Name | Producer |
Strain gauge | HBM Germany |
Electric engine | Oriental Motor |
IR barriers | Schneider |
Automation systems | Schneider /Simens /Omron |
Inverter | Panasonic Japan |
Control panel display | WEINVIEW Taiwan |
